Steel Industry Plant Self-Propelled Electric Driven Kpdz Motor Rail Transfer Trolley Cart
Steel industry plant self-propelled electric driven transfer carProduct Presentation----Electric Driven CarOur line of Electric Drvien Car are designed to accommodate the needs of a wide range of industries such as steel, aluminum, automotive, stamping, heavy manufacturing and several others. These ......
Send Inquiry
Product Description

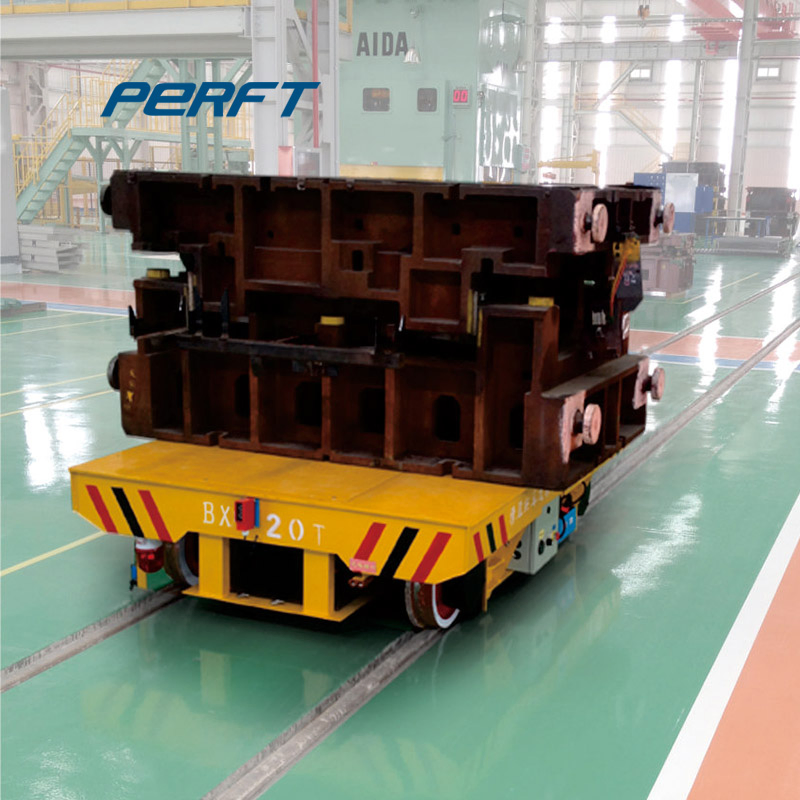

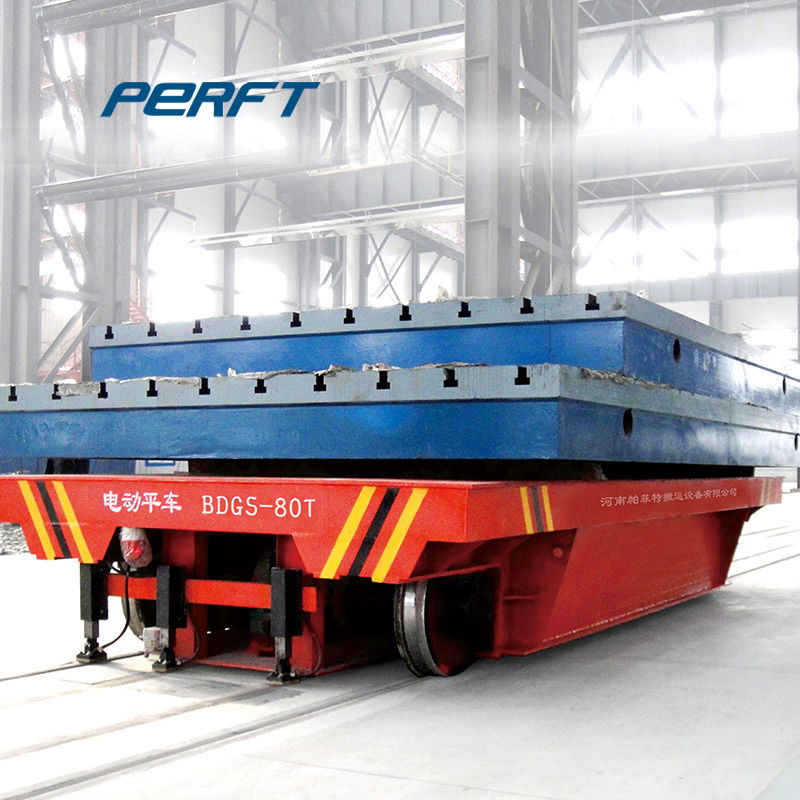

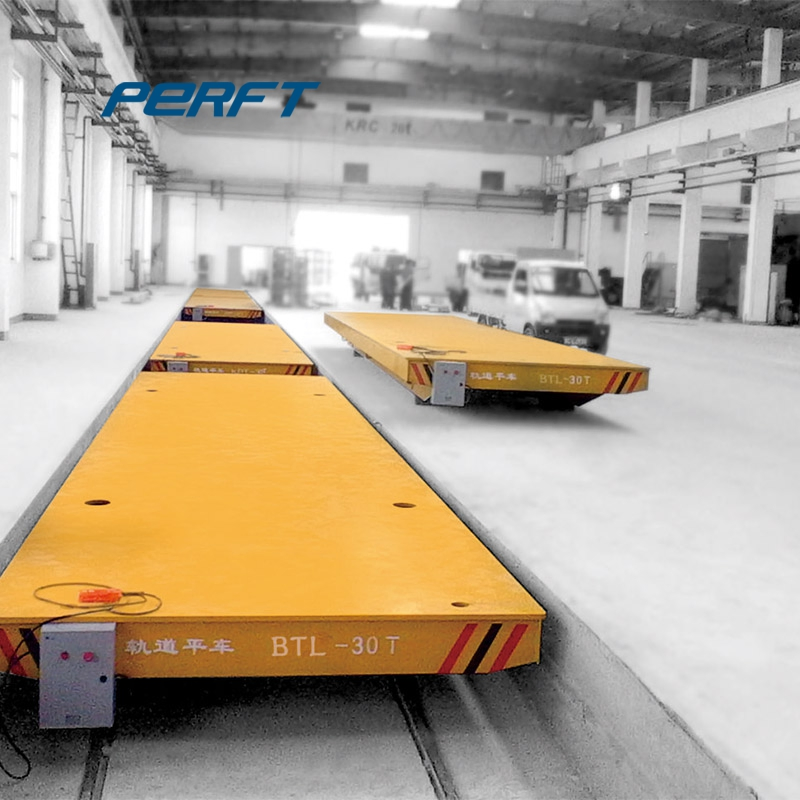

Steel industry plant self-propelled electric driven transfer car
Product Presentation----Electric Driven Car
Our line of Electric Drvien Car are designed to accommodate the needs of a wide range of industries such as steel, aluminum, automotive, stamping, heavy manufacturing and several others. These units are designed to operate on floor mounted rails and are used to transport heavy materials across crane bays or in areas not serviced by an overhead crane. This type Electric Drvien Car is powered by cable. It can be also powered by battery and low voltage rails. The powered source is depend on the running distance.
Parmeter----Electric Driven Car
| Model | BTL-2t | BTL -20t | BTL -50t | BTL -100t | BTL -150t | |
| Rated Load(t) | 2 | 20 | 50 | 100 | 150 | |
| Table Size (mm) | Length(L) | 2000 | 4000 | 5500 | 6500 | 10000 |
| Width(W) | 1500 | 2200 | 2500 | 2800 | 3000 | |
| Height(H) | 450 | 550 | 650 | 850 | 1200 | |
| Wheel Base(mm) | 1200 | 2800 | 4200 | 4900 | 7000 | |
| Rail Inner Gauge(mm) | 1200 | 1435 | 1435 | 2000 | 2000 | |
| Wheel Diameter(mm) | 270 | 350 | 500 | 600 | 600 | |
| Wheel Quantity | 4 | 4 | 4 | 4 | 8 | |
| Ground Clearance(mm) | 50 | 50 | 50 | 75 | 75 | |
| Running Speed(min) | 0-25 | 0-20 | 0-20 | 0-20 | 0-18 | |
| Motor Power(kw) | 0.8 | 2.5 | 5.5 | 11 | 15 | |
| Max Wheel Load(KN) | 14.4 | 77.7 | 174 | 343.8 | 265.2 | |
| Reference Weight(t) | 2.3 | 5.5 | 7.6 | 13.9 | 26 | |
| Recommended Rail Model | P15 | P24 | P43 | QU100 | QU100 | |
Advanages----Electric Driven Car
----Low noise:It causes low noise level.
----Maximum safety:Offers guarantee of maximum safety for operators and for the material handled. We really care about the safety of everyone involved in the job.
----Easy for operation: These Electric Drvien Car are easy to drive, so as soon as you get it you will be able to use it to transport your loads. We will support you to make the best out of your heavy load transfer cart.
---Flexible: The transfer carts eliminate first-in/first-out or fixed move paths
---Customized:The Electric Drvien Carcan be customized depending on all customer demands: dimensions, control mode rated load, battery life, superstructures, wheels and many others.

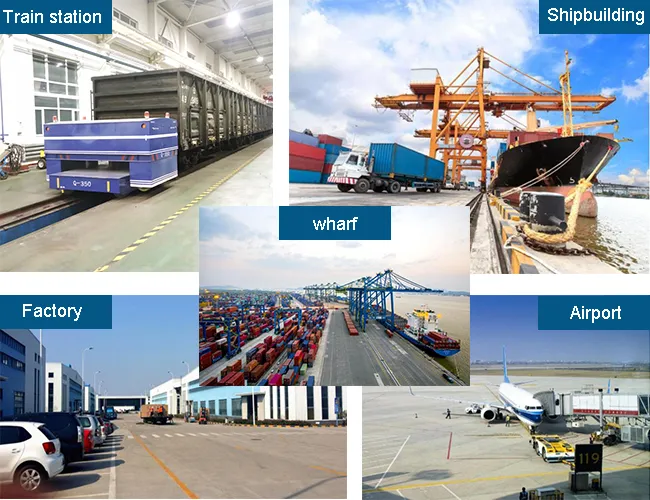

Application----Electric Driven Car
The cable reel powered transfer cart can be applied in assembly line(ring production line, loop production line), metallurgy industry (steel ladle), warehouse transport, ship industry (maintenance, assemble, container transport), workpiece transport in workshop, lathe transport, steel factory(steel billet, steel plate, steel coil, steel pipe, section steel, steel structure), construction(bridge, simple building, concrete, concrete column), petroleum industry(oil pump, sucker rod and parts), energy (polycrystalline silicon, generator, windmill), chemical industry(electrolytic cell, retort etc), railway(rail maintenance, rail welding, train tractor).

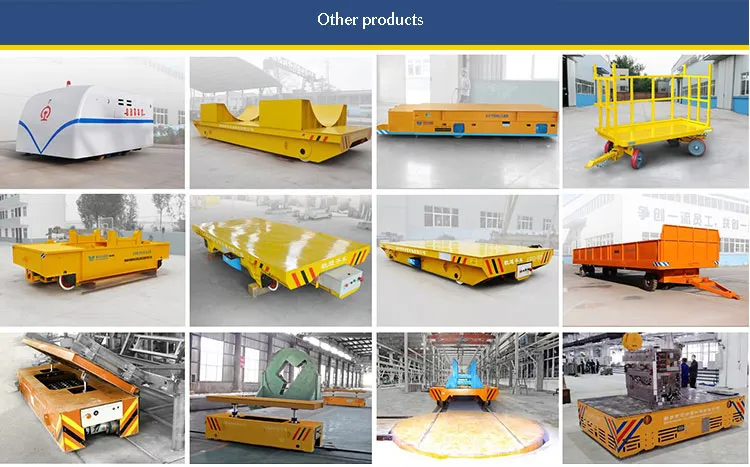

Other Products
Welcome to Henan Perfect Handling Equipment Co., Ltd. Our company is specializing in the Design and Manufacture of transport system to solve every material handling requirement. Our product includes Industrial Trailers, Coils & Die Transfer Cars, Electric Railway Ladle Cart, Scissor Lift Tables, Turntables, Trakcless Transfer Cart and many other specialty items.
*If the length is less than 12m, the width is beyond 2.2m. It needs to be transported by flat rack (20 or 40 ft) . If the equipment is beyond above dimension, and quantity need to consider bulk cargo.
Q & A: How to choose one suitable Electric Driven Car?
Please provide the answers below:
-Load capacity?
-Table size? (Length; Width ; Height)
-What cargo do you use the cart to transfer?
-What is the travel area you need to cover? (Indoor/Outdoor, straight line travel, etc)
-How about the running distance?
-What type(s) of power supply are required?
-Do you need any special functions?
Other Products
Welcome to Henan Perfect Handling Equipment Co., Ltd. Our company is specializing in the Design and Manufacture of transport system to solve every material handling requirement. Our product includes Industrial Trailers, Coils & Die Transfer Cars, Electric Railway Ladle Cart, Scissor Lift Tables, Turntables, Trakcless Transfer Cart and many other specialty items.
Packing and Shipping----Electric Driven Car
*For lenght is less than 6m, the width is less than 2.2m. It will be transported by 20ft container. If the length is longer than 5.9m and less than 12m, it will be transported by 40ft container. If the quantity is 2 sets or 3 sets, they can be transported by full container. If the quantity is 1 set, it can be transported by LCL Container.*If the length is less than 12m, the width is beyond 2.2m. It needs to be transported by flat rack (20 or 40 ft) . If the equipment is beyond above dimension, and quantity need to consider bulk cargo.
Q & A: How to choose one suitable Electric Driven Car?
Please provide the answers below:
-Load capacity?
-Table size? (Length; Width ; Height)
-What cargo do you use the cart to transfer?
-What is the travel area you need to cover? (Indoor/Outdoor, straight line travel, etc)
-How about the running distance?
-What type(s) of power supply are required?
-Do you need any special functions?
