Product Description

Industrial Usage Ladle Transfer Trolley Handling Cart

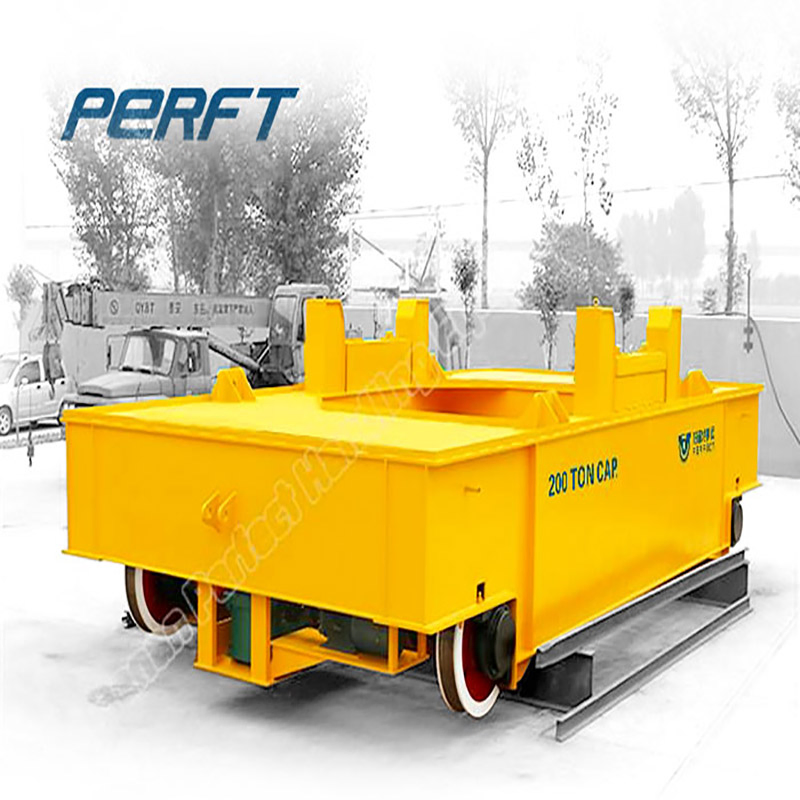

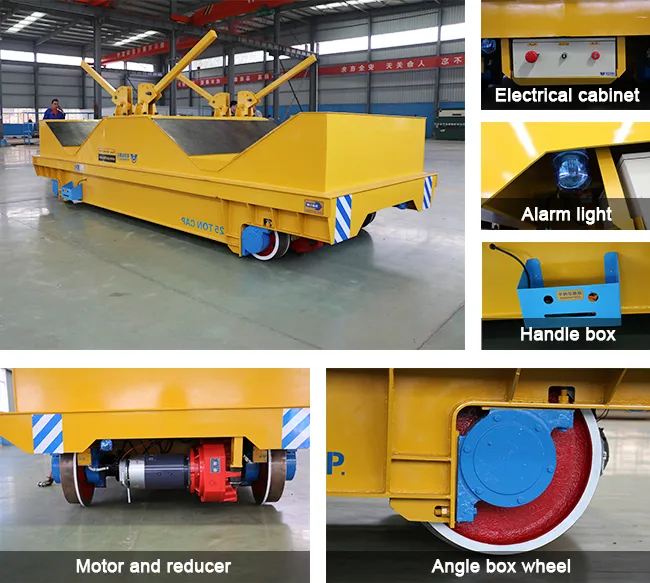

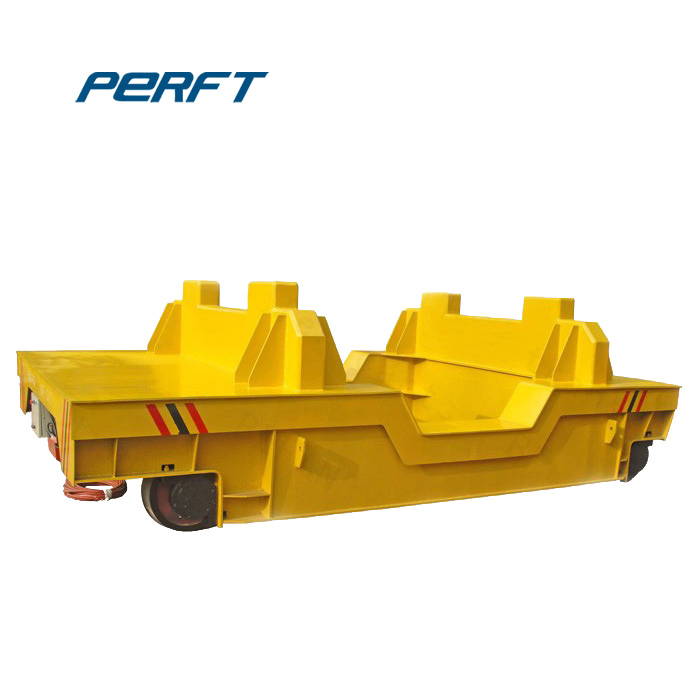

1. Introduction of Ladle Transfer Trolley
This ladle transfer trolley is mainly used to handling liquid steel,it is make up of high temperature bearing materials and special structure.It is powered by cable,the 380V alternating current is supplied to the traction motor and then the control system makes the car to start,stop,move forward,move backward.We also produce many other knids of transfer cart to accomodate different customer's needs.
Industrial Trailer Ladle Rail Transfer Trolley Handling Cart

Industrial Trailer Ladle Rail Transfer Trolley Handling Cart

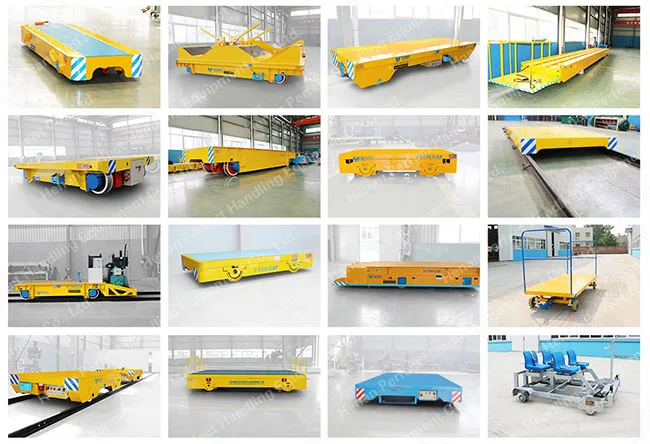

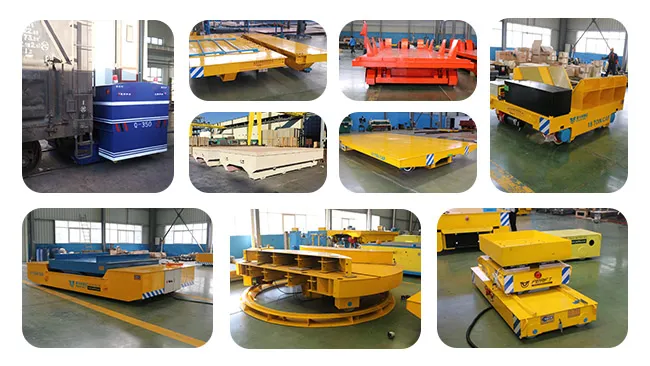

2. Customized of transfer cart

PERFECT is specialized in designing and manufacturing of heavy duty Material Transfer Cart:
Transfer Cart: Rail transfer cart, Trackless transfer car, Battery operated transport trolley, Coils cart, Ladle transfer cart, Hydraulic scissors lift table cart etc.
Industrial Trailer: Flatbed trailer, Factory trailer, Utility trailer, Workshop transfer trailer, Airport baggage cargo trailer, Car transport trailer, Motorized transfer trailer etc.
Cargo Transportation: Die cart, Coils transport cart, pipes transfer carriage, steel beam transporter, aluminum plate transport vehicle, transformer carrier bogie
Speical Handling Equipment: Ladle transfer trolley, Ferry Transfer wagon, Cross-rail transport equipmet, Motorized turntable, Vacuum furnace transfer cart, Automatic vehicle etc.
Industrial Trailer Ladle Rail Transfer Trolley Handling Cart

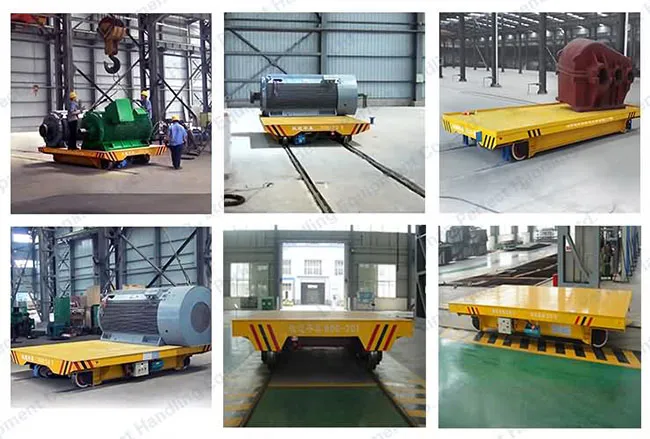

3. Application

Our products are widely applied in metallurgy,manufacture,oil and gas,die shops,shipyards,chemical plant,automotive,mining industry,aerospace,power generation,coil industry,paper mills,metal working,warehouse and so on.We can also design a special one for you according to you requirement.
Industrial Trailer Ladle Rail Transfer Trolley Handling Cart

4.Our Team
Henan Perfect Handling Equipment Co., Ltd. have been specializing in steel frame trailer manufacture for over 15 years. There are more than 150 employees including 10 senior engineers,15 engineers,25 technicians.With advanced equipment, excellent engineers and professional workers, we have got the certificates of CE, SGS, ISO. Our products not only have sold across the country,but also exported to US,Germany,Thailand,Netherlands,South Africa,Syria,Turkey,Nepal and many other countrys.
Industrial Trailer Ladle Rail Transfer Trolley Handling Cart

5. Parameter

Model		BXC-2t	BXC-20t	BXC-50t	BXC-100t	BXC-150t
Rated Load(t)		2	20	50	100	150
Table Size (mm)	Length(L)	2000	4000	5500	6500	10000
	Width(W)	1500	2200	2500	2800	3000
	Height(H)	450	550	650	900	1200
Wheel Base(mm)		1200	2800	4200	4900	7000
Rail Inner Gauge(mm)		1200	1435	1435	200	2000
Wheel Diameter (mm)		270	350	500	600	600
Running Speed (m/min)		0-25	0-20	0-20	0-20	0-18
Motor Power(kw)		1	2.2	5	10	15
Battery Capacity		180	180	330	440	600
Battery Voltage		24	48	48	72	72
Running Time When Full Load		4.32	4	3.3	3.2	2.9
Running Distance for One Charge(km)		6.5	4.8	4	3.8	3.2
Recommended Rail Model		P15	P24	P43	QU100	QU100

6. Advantages
---- Low noise It causes low noise level.
---- Maximum safety Offers guarantee of maximum safety for operators and for the material handled. We really care about the safety of everyone involved in the job.
---- Easy for operation These vehicles are easy to drive, so as soon as you get it you will be able to use it to transport your loads. We will support you to make the best out of your heavy load transporter.
---- Suitable for All Kinds of Weight The steering battery powered trolley is superb for handling both small and extremely huge loads for its modular fabrication and its high payloads: up to 300 ton for each trolley.
----No limits for the Spaces The steering battery-driven trolley is rather compact and with all the different types of steering: 90 degree, carousel, diagonal, compass and so on. And it can operate even in very narrow spaces.
7. Our Factory

8. Q&A
What Are The Advantages of Using a Transfer Cart?
For smaller loads, manual carts can be dedicated to specific work place activities such as shuttling materials. This often makes the carts more available for use. Transfer carts are more accommodating for moving long loads through restrictive passage ways or doorways. For heavier loads transfer carts are an excellent affordable choice for their ability to handle heavy loads. Transfer carts are compact in design and work well in areas with limited floor area. Another advantage over lift trucks is how the cart deck can be customized to suit specific loads.
What Product Handling Applications Use Transfer Carts?
1.   Coils (V-Groove deck)
2.   Tanks (size/stability for uniformly distributed loads)
3.   Assemblies (fixture cradle) for a complete build or to send a partially completed product to the next station (tractors, heavy equipment machinery)
4.   Sub-Assembly shuttle from one line to another line
5.   Maintenance cart for motors and pumps
6.   Equipment support (stand-off deck) for navigating loads to locations with a plant facility
7.   Material shuttle for steel tubing (flat decking with guard rails)
8.   Elevating platform for assembly process (integrated screw-jack table)
9.   Sand casting (flat decking)
