Product Description

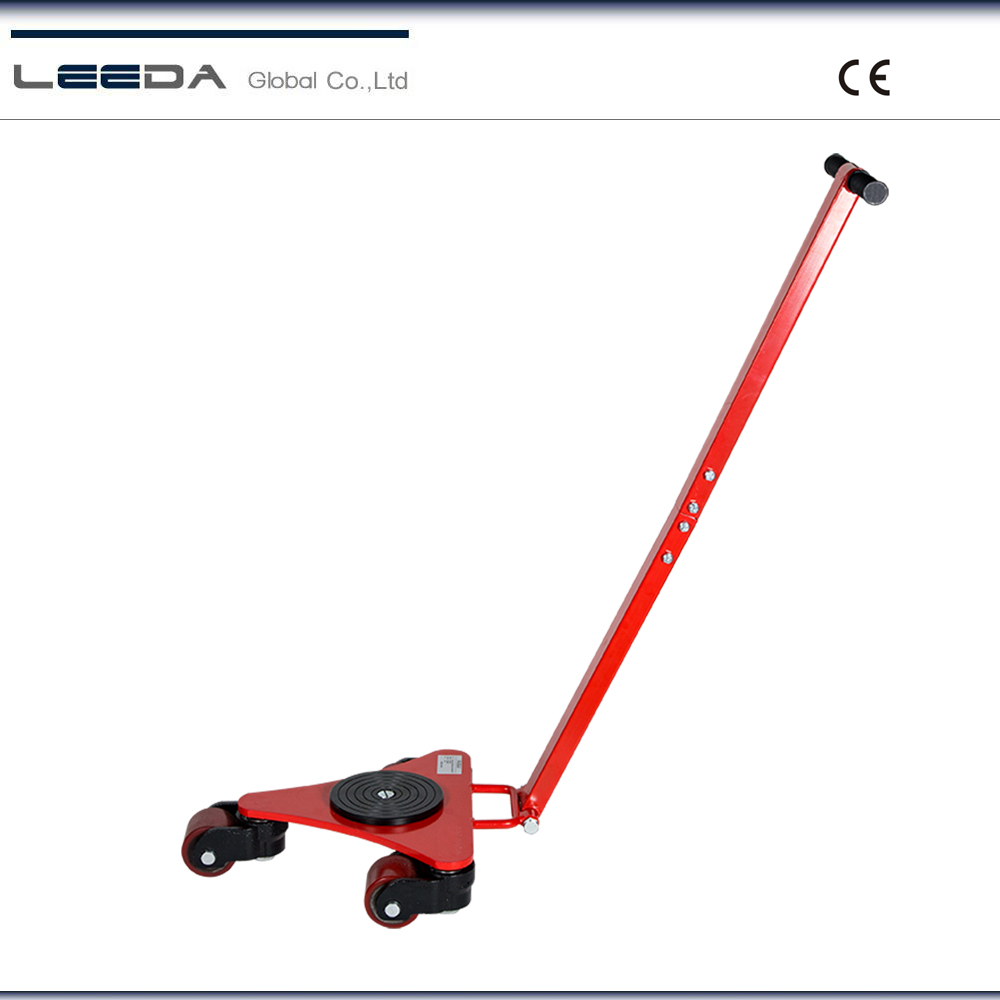

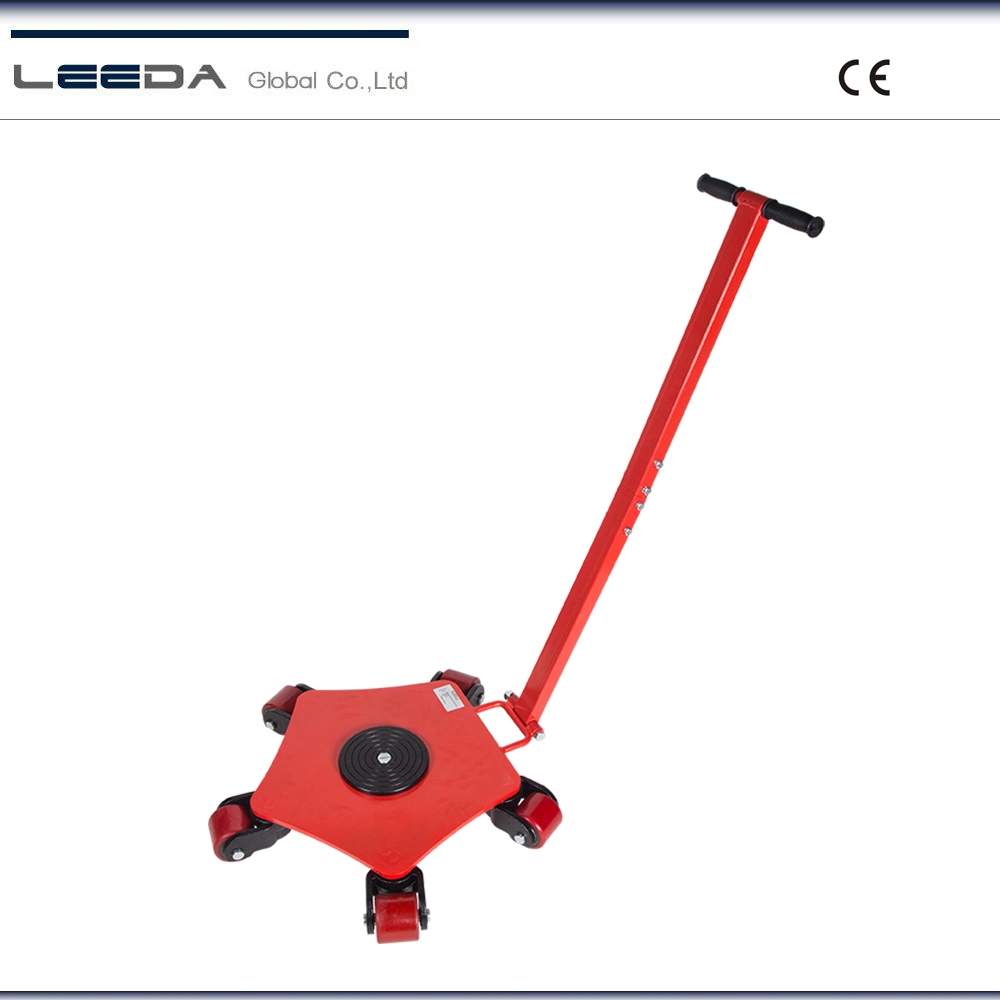

Rotating Roller Machine Skate allows heavy machinery to move easily in and out of tight spaces due to its 360-degree maneuverability.
It is recommended to be used with multiple dollies for additional stability and flexibility.

1.Can be used wherever heavy objects have to be moved.
The Load can be lifted using either the roller crowbar or a jack, allowing the skates to be easily positioned.
2.The skates are maintenance-free and are fitted with handles for ease of carrying and positioning
3.These dollies offer the ability to maneuver closely positioned heavy machinery in a multi-directional 360°axis, allowing loads
to be moved in and out of confined spaces with ease.
4. Heavy-duty dolly structure with top plate.
5. Scratch-resistant powder coat finish.
6. 2 ton and 4 ton: 1010mm operating handle
7. 6 ton and 8 ton: 1150mm operating handle with towing eye

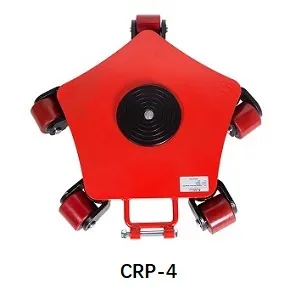

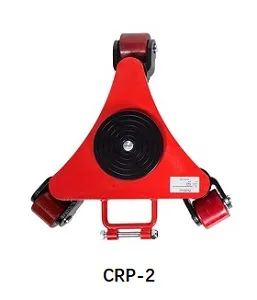

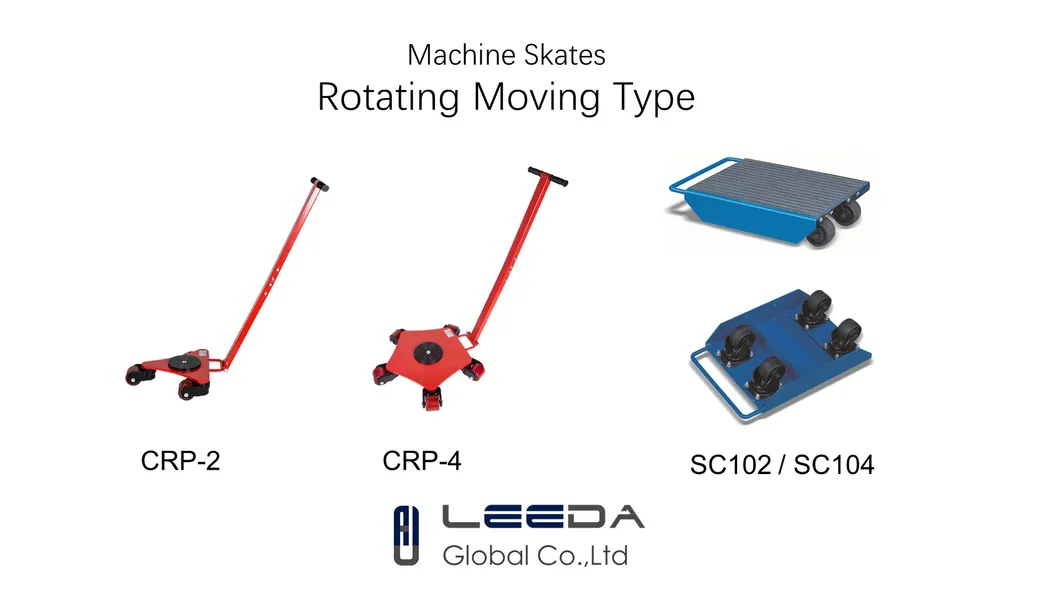

Rotating Roller Machine Moving Skates Crp Series

Model	CRP-2	CRP-4	CRP-6	CRP-8
Load Capacity(Tonne)	2	4	6	8
Height(mm)	110	110	118	118
Roller Dimensions(mm)	Ø80 x 70	Ø80 x 70	Ø80 x 85	Ø80 x 85
No. of Roller	3	5	4	5
Type of Roller	Urethane	Urethane	Nylon	Nylon
Supporting Surface(mm)	Ø160	Ø160	Ø160	Ø160
Type of Support Surface	Grooved Surface	Grooved Surface	Rubber Pad	Rubber Pad
Overall Dimensions(mm)	440 X 390 X 1125	550 X 470 X 1125	490 X 390 X 1265	550 X 470 X 1265
Net Weight (kg)	25	38	44	55
