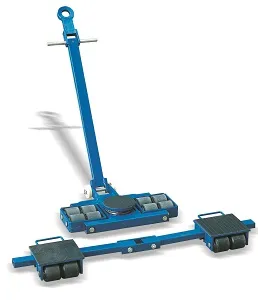

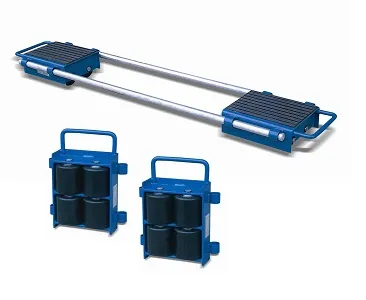

30 Ton Complete Machinery Skate Kits Sk30

Complete Machinery Skate Kits are useful for variable short transportation distances.

They are ideal for installation works and the movement of heavy loads.

The steering handle helps to give better control and therefore makes it easier to maneuver large machinery into tight areas.

 It is recommended that moving speed should not exceed 5m/min. Minimum turning circle is 3m

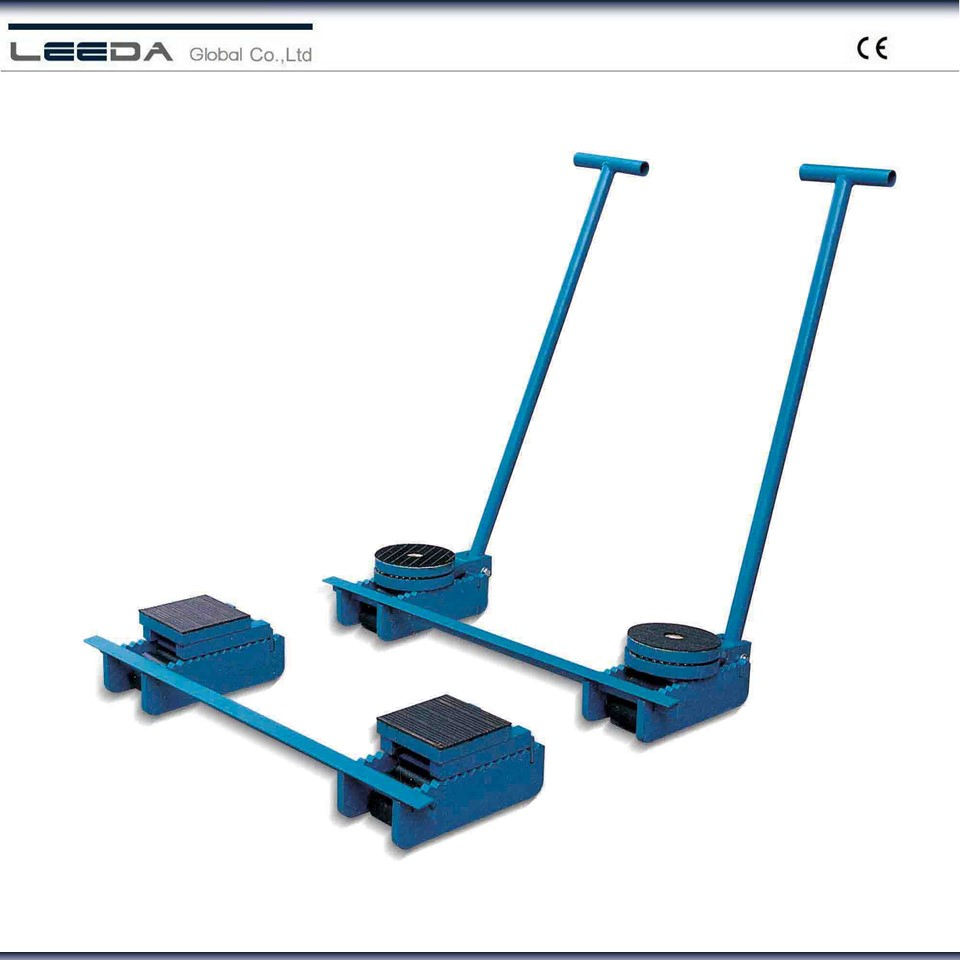

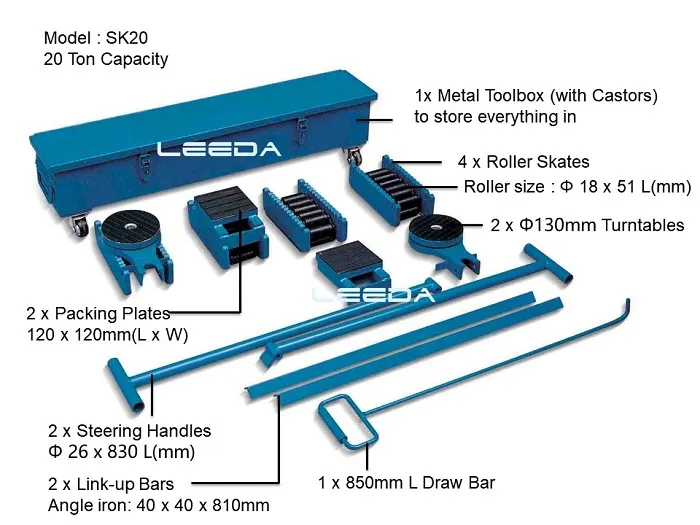

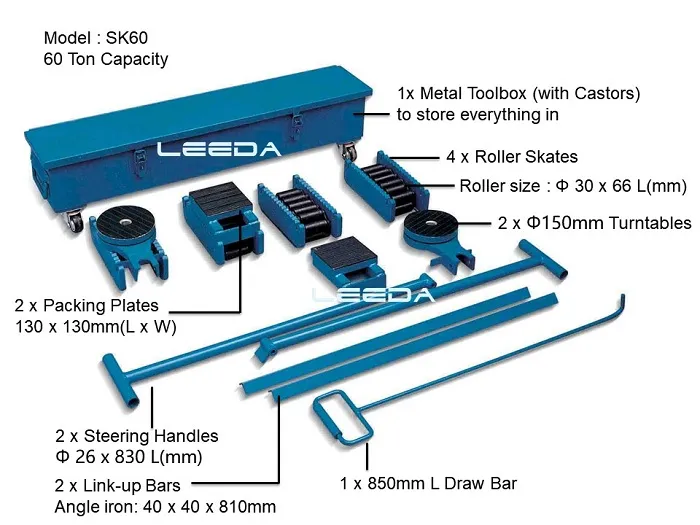

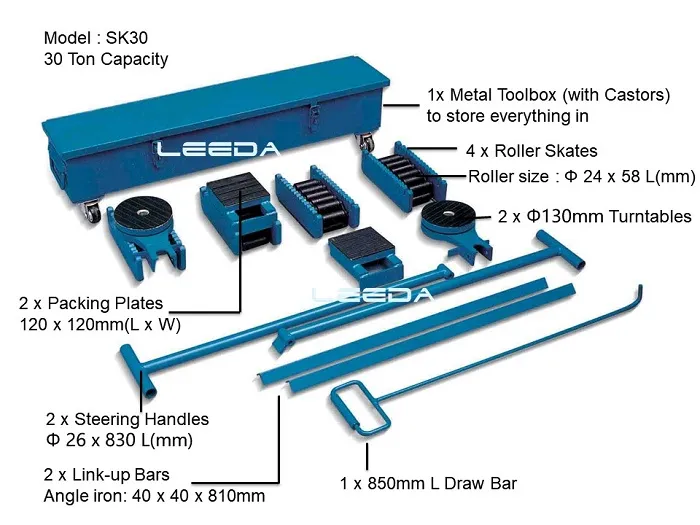

This roller kit Including 4 pcs roller skates, 2 pcs turnables, 2 pcs packing plates, 2 pcs steering handles,

2pcs link-up bars and1pc pulling bar

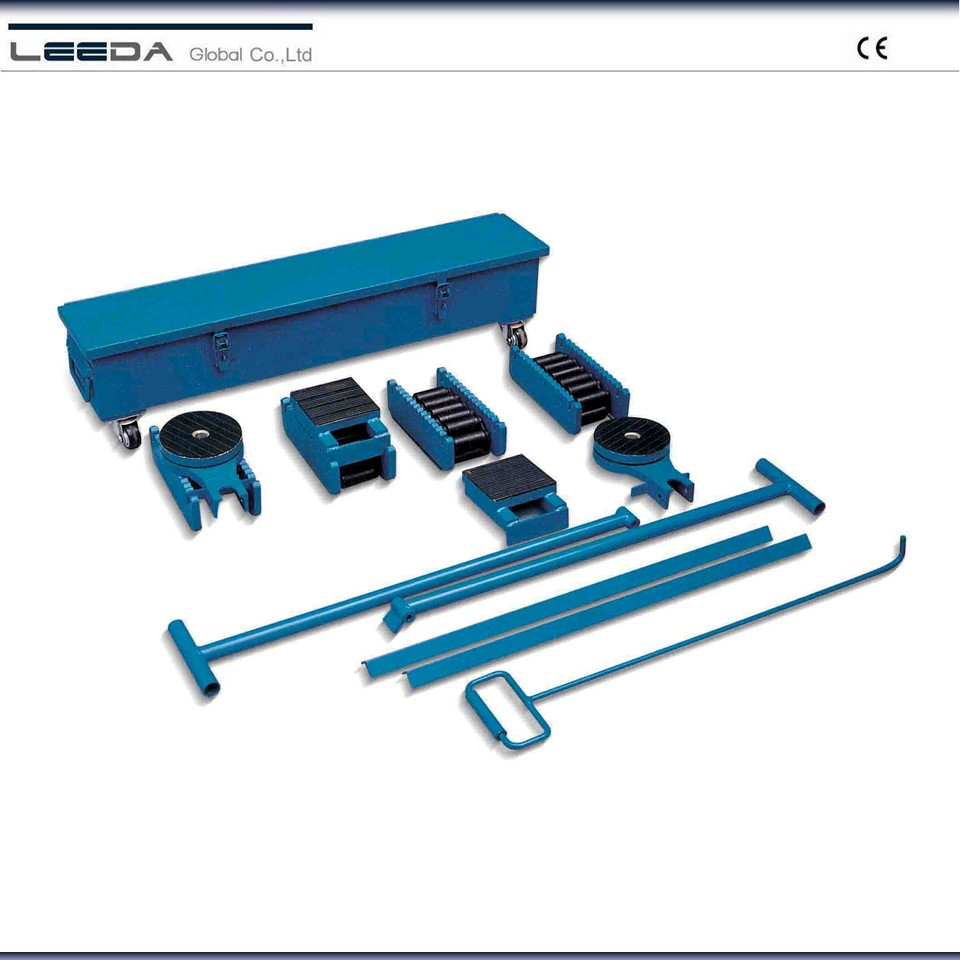

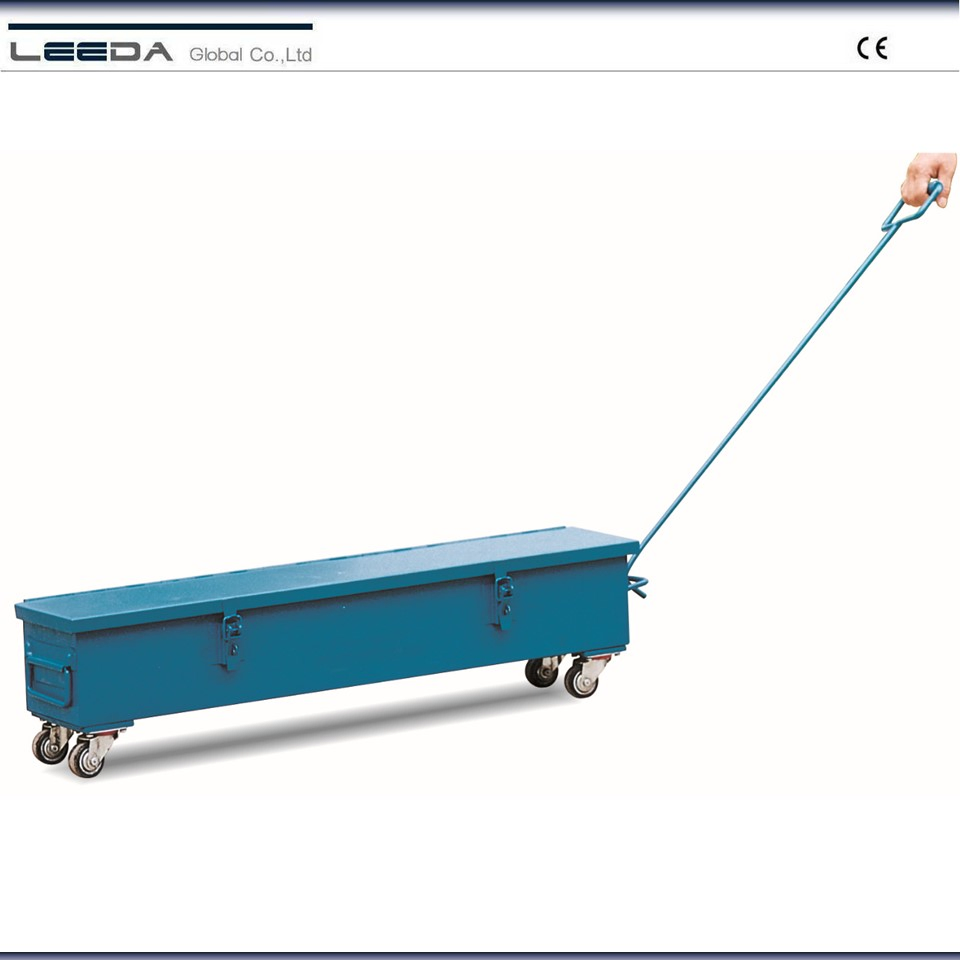

1.Complete kit with handy steel storage box with castors

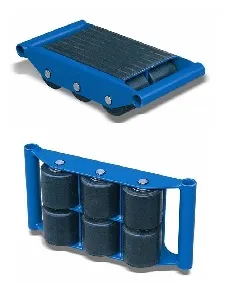

2.Various skate types including swivel and fixed
3.Kit includes drawbars
4.High quality durable equipment


Model		HL-SK20		HL-SK30		HL-SK60
Capacity	(tonne)	20		30		60
Length Support                           (mm)		120		120		130
Width Support                             (mm)		120		120		130
Total Height	(mm)	108		117		140
Rollers	Dia. (mm)	Ø18		Ø24		Ø30
Swivel Top	(mm)	Ø130		Ø130		Ø150
Net Weight of Kit                           (kg)		50		58		92
